Aluminium Industry

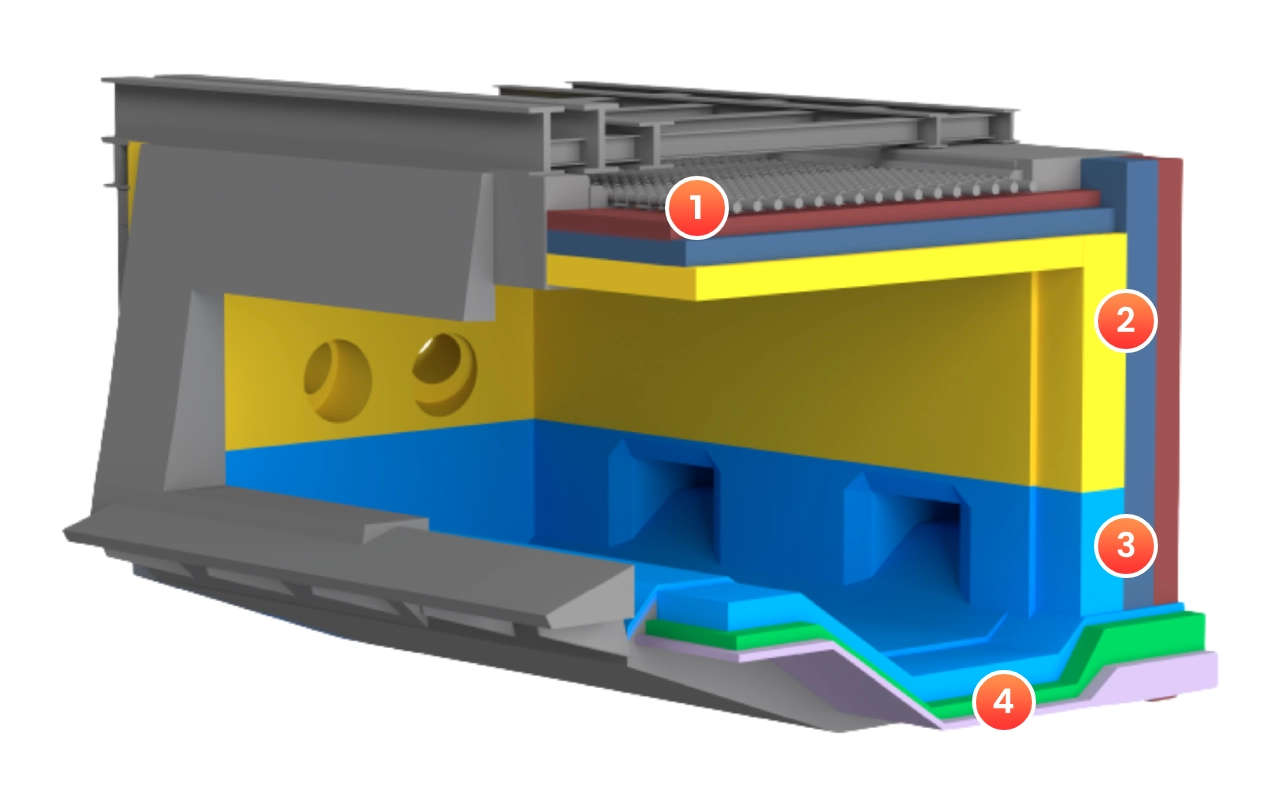

Melting & Holding Furnace

In collaboration with a leading Japanese furnace engineering and design company, and backed by extensive experience in both domestic and international markets, Siam Refractory offers a comprehensive product portfolio tailored to the specific requirements of aluminium furnace operations.

To minimize dross formation and prevent metal penetration during operation, we have developed the RC80, C80AL, and C60AL series of aluminium non-wetting low cement castables. These products deliver exceptional resistance to aluminium and alkali attack, outstanding mechanical strength, and excellent thermal shock resistance under fluctuating operating conditions.

1
Roof
Working Lining
  • C60AL, Hanger Brick (SK36, KB60), QUIKGUN-60AL
Safety Lining
  • CAST11LW, CAST13LW, B2
Insulation Lining
  • Ceramic Fiber Materials

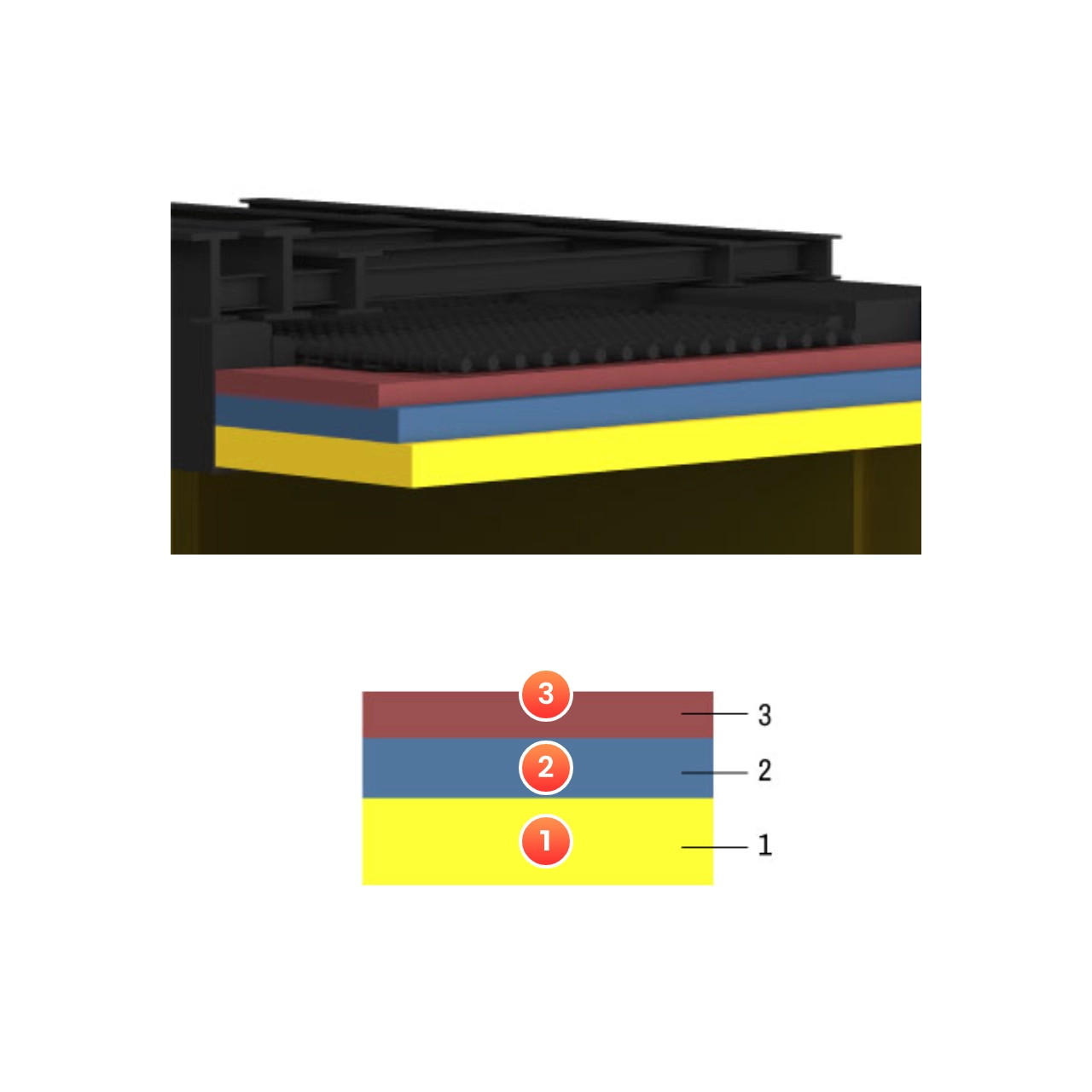

Roof
MeltingHolding-Roof
Working Lining (1st Layer) :
  • C60AL, Hanger Brick (SK36, KB60), QUIKGUN-60AL
Safety Lining (2nd Layer) :
  • CAST11LW, CAST13LW, B2
Insulation Lining (3rd Layer) :
  • Ceramic Fiber Materials
2
Upper Wall
Working Lining
  • C60AL, QUIKGUN-60AL
Safety Lining
  • HI23, B2
Insulation Lining
  • Ceramic Fiber Materials

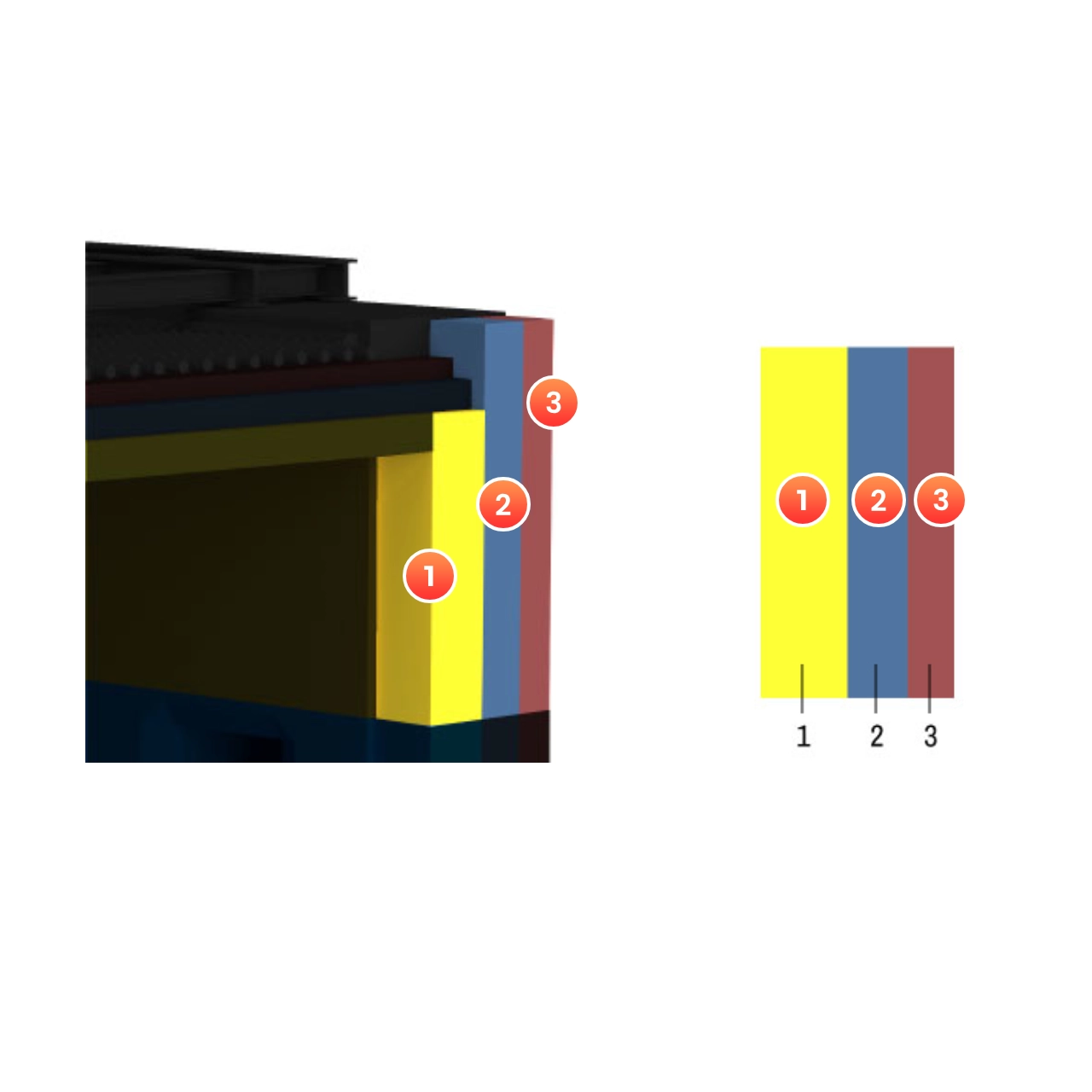

Upper Wall
MeltingHolding-UpperWall
Working Lining (1st Layer) :
  • C60AL, QUIKGUN-60AL
Safety Lining (2nd Layer) :
  • HI23, B2
Insulation Lining (3rd Layer) :
  • Ceramic Fiber Materials
3
Lower Wall
Working Lining
  • C80AL, RC80N, QUIKGUN-80AL
Safety Lining
  • CAST15ES
Insulation Lining
  • Insulation Board

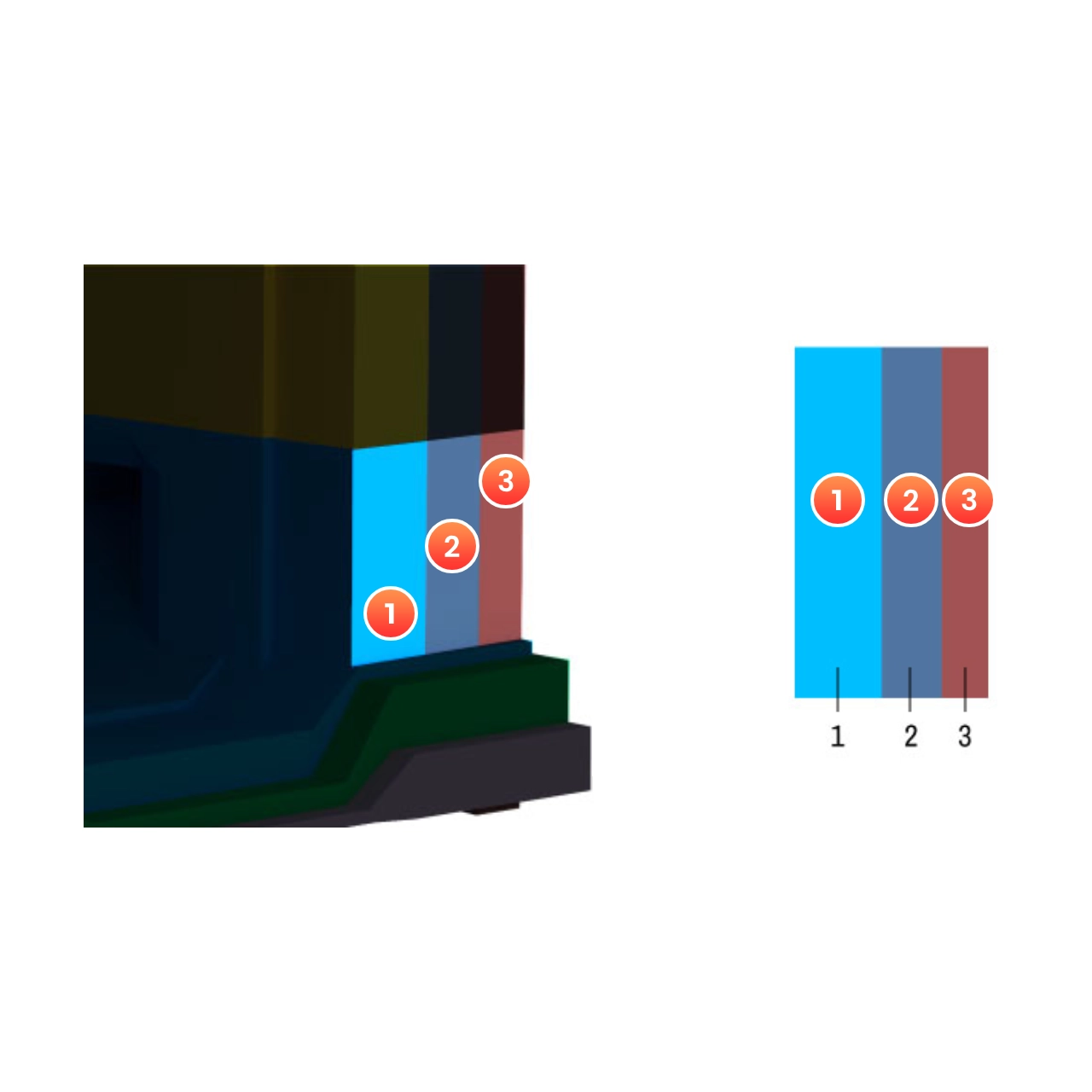

Lower Wall
MeltingHolding-LowerWall
Working Lining :
  • C80AL, RC80N, QUIKGUN-80AL
Safety Lining :
  • CAST15ES
Insulation Lining :
  • Insulation Board
4
Floor
Working Lining
  • C80AL, RC80N, C80ALE, PC-80N(A), NANOCAS-80AL, QUIKGUN-80AL
Safety Lining
  • CAST15ES
Insulation Lining
  • CAST13LW

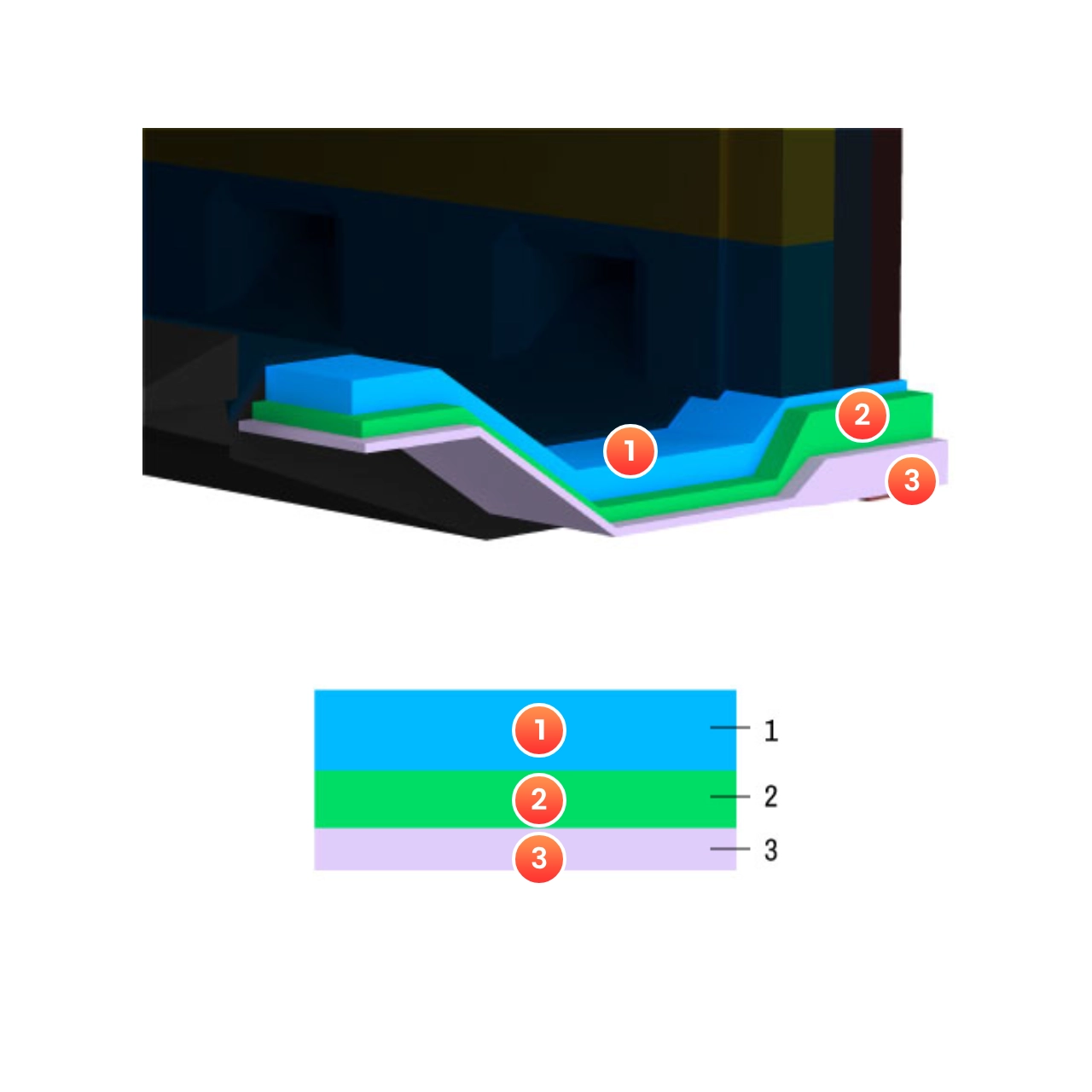

Bottom Floor
MeltingHolding-BottomFloor
Working Lining :
  • C80AL, RC80N, C80ALE, PC-80N(A), NANOCAS-80AL, QUIKGUN-80AL
Safety Lining :
  • CAST15ES
Insulation Lining :
  • CAST13LW
Product for Minor Repair Work

PLASTER-90R SKYRAM
