Cement Industry

Calciner

Modern calciner operations demand refractory solutions that excel under extreme thermal and chemical stress. As decarbonization and preheating intensify, and the use of alternative fuels and raw materials increases, the system faces elevated chemical circulation and aggressive process conditions. Our engineered refractory linings are specifically formulated to resist alkali attack, thermal shock, and abrasion, ensuring long service life and consistent performance in the most demanding calciner environments

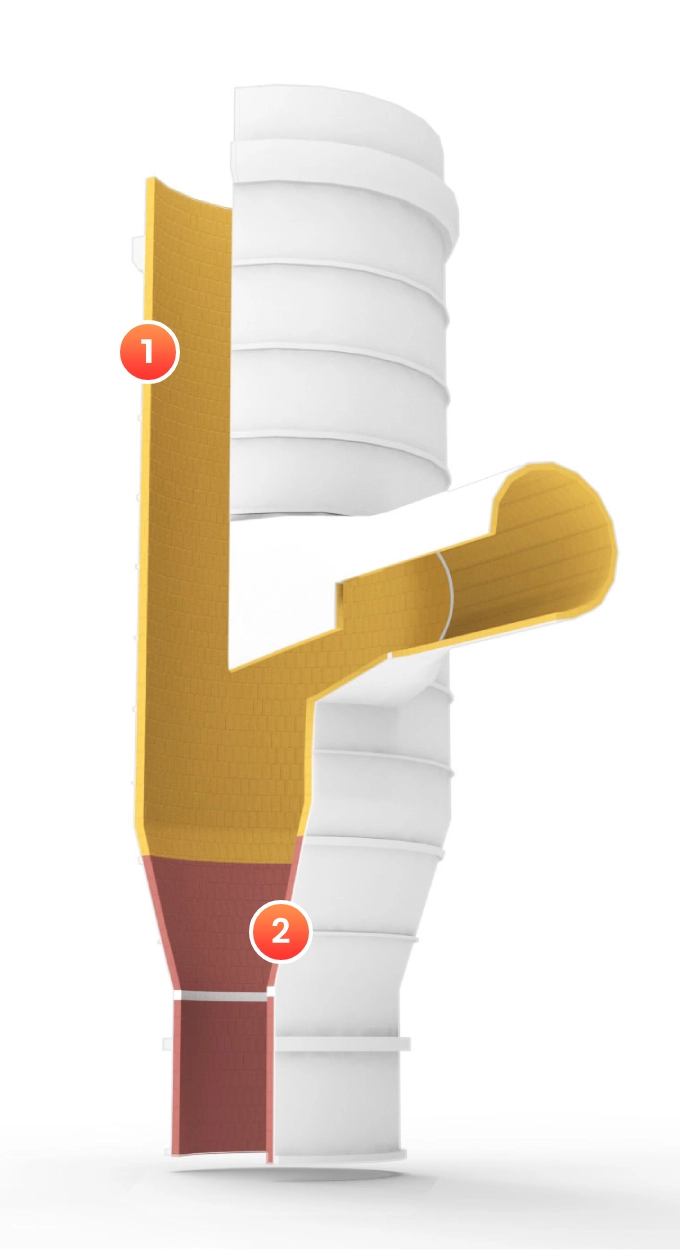

Calciner Exit Duct

1
Upper calciner
Working Lining (Normal Condition)
  • K43, KB60, C40A, C60A, QUIKGUN-MC1550, QUIKSHOT-A60
Working Lining (Severe Condition)
  • PH40AF, PH50AF, PH40AF-S5, PH40AF-S10, PH50AF-S5, PH50AF-S10, ABRACAST50SIC, ABRACAST60SIC, C-SIC300, C-SIC500, QUIKGUN-LC1550, QUIKGUN-SIC155, SUPRAGUN-S400, QUIKSHOT30SIC
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 310, Stainless Steel 253MA
Mortar
  • 43AM(D), 50AM(D), 60AM(D)

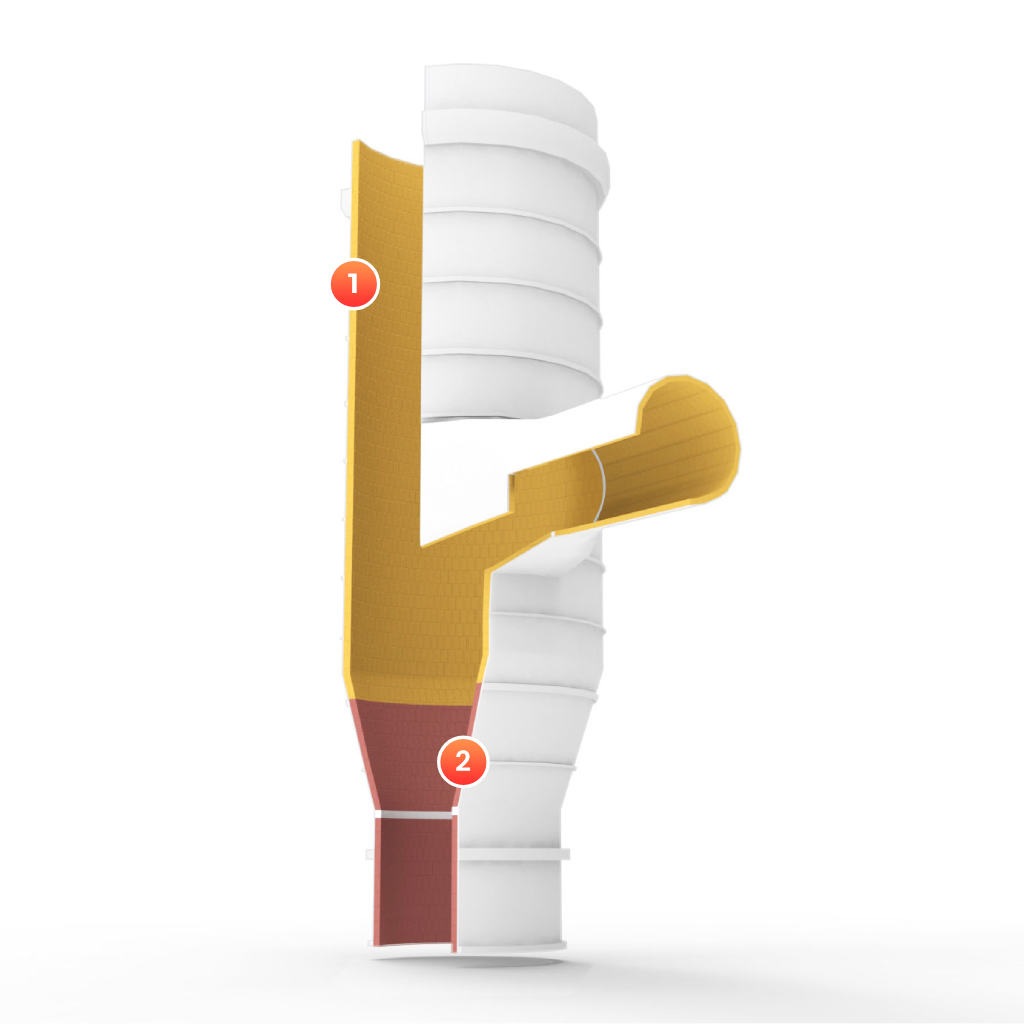

Upper Calciner
Calciner-02-2
1. Brick Lining
  • Working Lining
    • Normal Condition : K43 | KB60
    • Severe Condition : PH40AF | PH50AF | PH40AF-S5 | PH40AF-S10 | PH50AF-S5 | PH50AF-S10
  • Insulation Lining : IF135 | HI20
2. Castable Lining
  • Working Lining
    • Normal Condition : C40A | C60A | QUIKGUN-MC1550 | QUIKSHOT-A60
    • Severe Condition : ABRACAST150SIC | ABRACAST60SIC | C-SIC300 | C-SIC500 | QUIKGUN-LC1550 | QUIKGUN-SIC155 | SUPRAGUN-S400 | QUIKSHOT30SIC
  • Insulation Lining
    • CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System :  STAINLESS STEEL AISI304 |  STAINLESS STEEL 253MA
  • Mortar : 43AM(D) | 50AM(D) | 60AM(D)
2
Lower Calciner
Working Lining (Normal Condition)
  • K43, KB60, C40A, C60A, QUIKGUN-MC1550, QUIKSHOT-A60
Working Lining (Severe Condition)
  • PH50AF, PH60AF, PH50AF-S5, PH50AF-S10, PH60AF-S5, PH60AF-S10, ABRACAST50SIC, ABRACAST60SIC, C-SIC300, C-SIC500, QUIKGUN-LC1550, QUIKGUN-SIC155, SUPRAGUN-S400, QUIKSHOT-A60, QUIKSHOT30SIC
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 310, Stainless Steel 253MA
Mortar
  • 43AM(D), 50AM(D), 60AM(D)
Lower Calciner
Calciner-02-2
1. Brick Lining
  • Working Lining
    • Normal Condition : K43 | KB60
    • Severe Condition :  PH50AF | PH60AF | PH50AF-S5 | PH50AF-S10 | PH60AF-S5 | PH60AF-S10
  • Insulation Lining : IF135 | HI20
2. Castable Lining
  • Working Lining
    • Normal Condition : C40A | C60A | QUIKGUN-MC1550 | QUIKSHOT-A60
    • Severe Condition : ABRACAST50SIC | ABRACAST60SIC, | C-SIC300 | C-SIC500 | QUIKGUN-LC1550 | QUIKGUN-SIC155 | SUPRAGUN-S400 | QUIKSHOT-A60 | QUIKSHOT30SIC
  • Insulation Lining : CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System :  STAINLESS STEEL AISI304 |  STAINLESS STEEL 253MA
  • Mortar : 43AM(D) | 50AM(D) | 60AM(D)

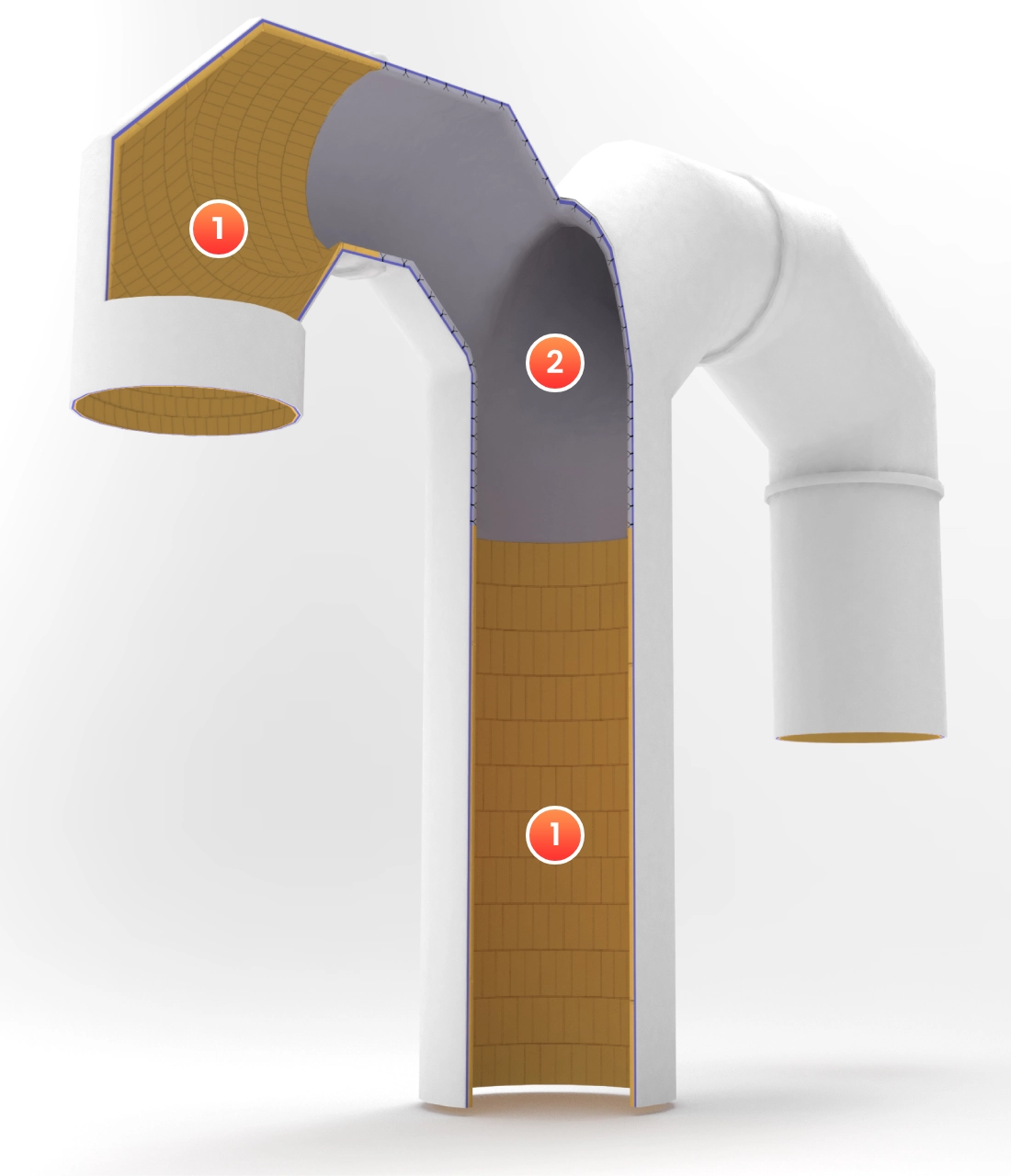

Calciner Bend to Cyclone / Calciner Exit Duct

1
BRICK lINING
Working Lining (Normal Condition)
  • K43, KB60
Working Lining (Severe Condition)
  • PH40AF, PH60AF, PH40AF-S5, PH40AF-S10, PH60AF-S5, PH60AF-S10, KOTERESIS-S300
Insulation Lining
  • IF135, HI16, HI20
Upper Calciner
Calciner-03-2
1. Brick Lining
  • Working Lining
    • Normal Condition : K43 | KB60
    • Severe Condition : PH40AF | PH50AF | PH40AF-S5 | PH40AF-S10 | PH50AF-S5 | PH50AF-S10
  • Insulation Lining : IF135 | HI20
2. Castable Lining
  • Working Lining
    • Normal Condition : C40A | C60A | QUIKGUN-MC1550 | QUIKSHOT-A60
    • Severe Condition : ABRACAST150SIC | ABRACAST60SIC | C-SIC300 | C-SIC500 | QUIKGUN-LC1550 | QUIKGUN-SIC155 | SUPRAGUN-S400 | QUIKSHOT30SIC
  • Insulation Lining
    • CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System : STAINLESS STEEL AISI304 |  STAINLESS STEEL 253MA
  • Mortar : 43AM(D) | 50AM(D) | 60AM(D
2
CASTABLE LINING
Working Lining (Normal Condition)
  • C40A, C60A, QUIKGUN-MC1550, QUIKSHOT-A60
Working Lining (Severe Condition)
  • C60A, ABRACAST50SIC, ABRACAST60SIC, C-SIC300, QUIKGUN-LC1550, SUPRAGUN-S400, QUIKSHOT30SIC
Insulation Lining
  • CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11
Lower Calciner
Calciner-03-3
1. Brick Lining
  • Working Lining
    • Normal Condition : K43 | KB60
    • Severe Condition :  PH50AF | PH60AF | PH50AF-S5 | PH50AF-S10 | PH60AF-S5 | PH60AF-S10
  • Insulation Lining : IF135 | HI20
2. Castable Lining
  • Working Lining
    • Normal Condition : C40A | C60A | QUIKGUN-MC1550 | QUIKSHOT-A60
    • Severe Condition : ABRACAST50SIC | ABRACAST60SIC, | C-SIC300 | C-SIC500 | QUIKGUN-LC1550 | QUIKGUN-SIC155 | SUPRAGUN-S400 | QUIKSHOT-A60 | QUIKSHOT30SIC
  • Insulation Lining : CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System :  STAINLESS STEEL AISI304 |  STAINLESS STEEL 253MA
  • Mortar : 43AM(D) | 50AM(D) | 60AM(D)
