Cement Industry

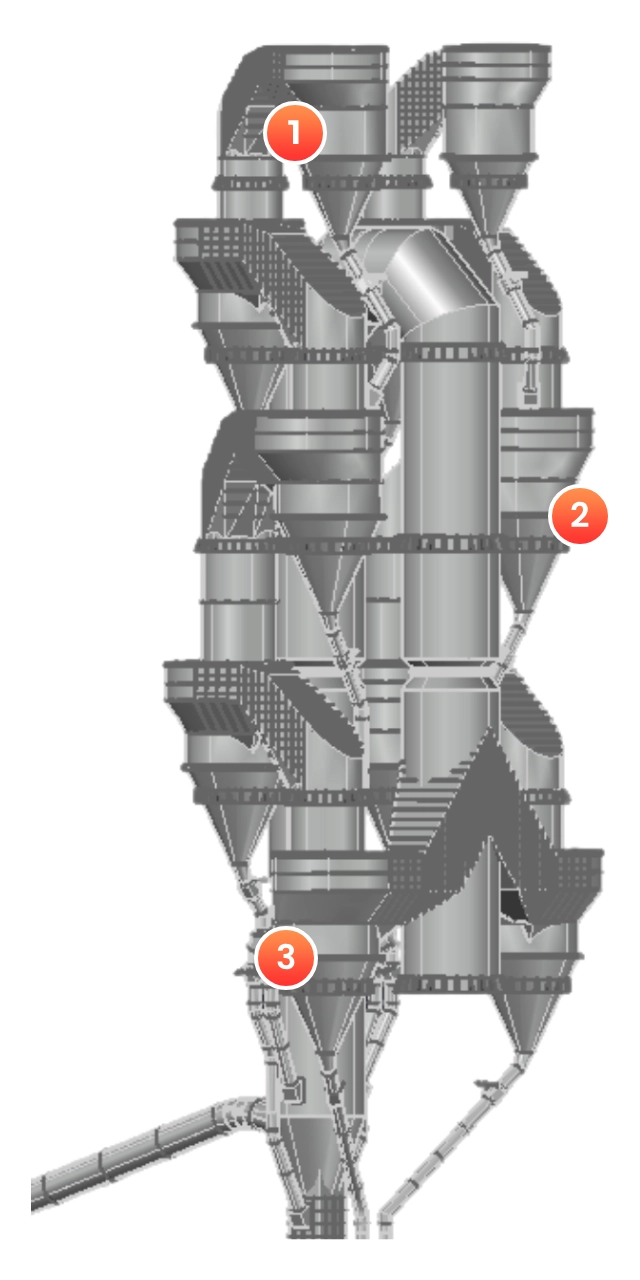

Cyclone Preheater

With deep thermo-technical expertise, we assess your kiln’s operating conditions and cyclone configuration – accounting for extreme heat, high-velocity gas flow, and aggressive chemical exposure, to guide accurate product selection and engineering design. Our solutions are built on practical experience and collective knowledge, delivering reliable and efficient performance

1
Upper Cyclone
Working Lining
  • K35, PH30AF, CAST12, CAST13ES, QUIKGUN-C12
Insulation Lining
  • CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 304
Mortar
  • 30AM(D)
View
Upper Cyclones

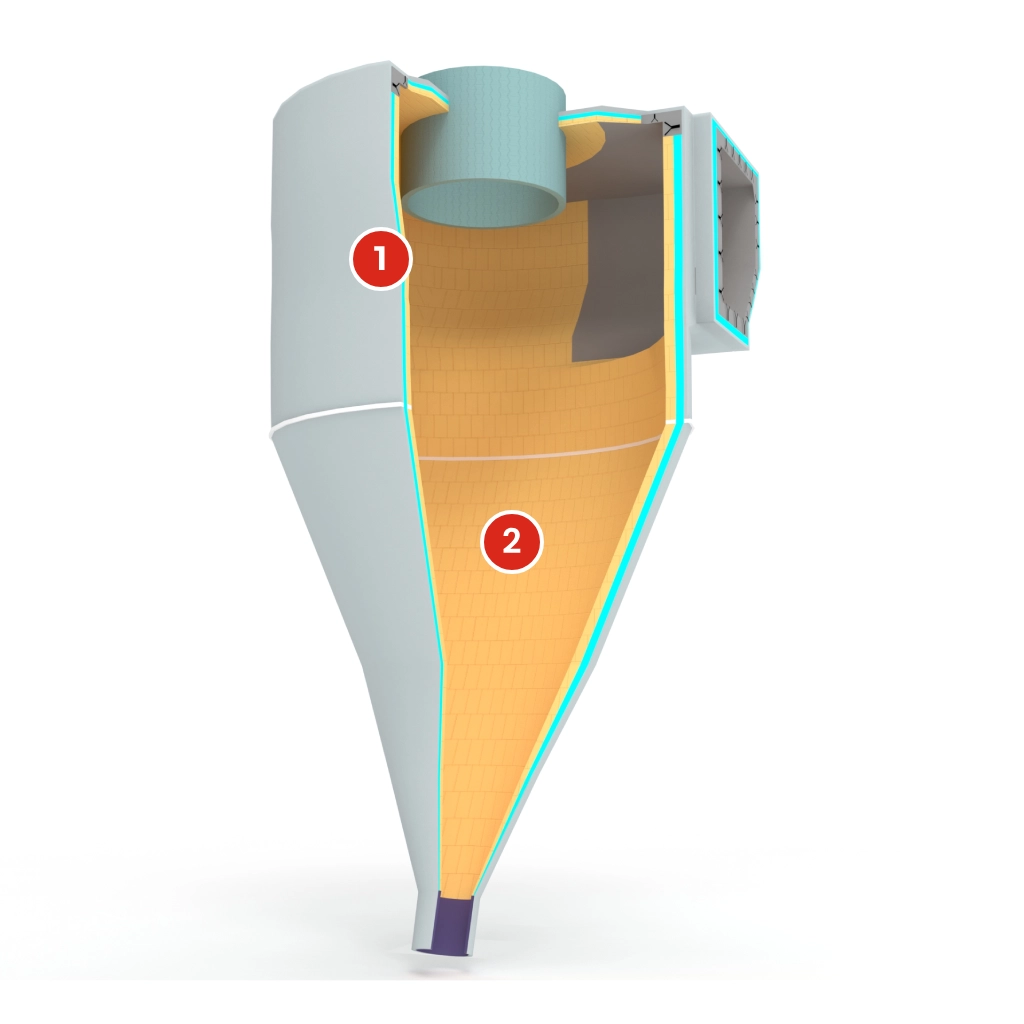

upper-cyclone
1. Brick Lining
  • Working Lining : K35 | PH30AF
  • Insulation Lining : HI16 | HI20
2. Castable Lining
  • Working Lining : CAST12 | CAST13ES | QUIKGUN-C12
  • Insulation Lining : CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System : STAINLESS STEEL AISI304
  • Mortar : 30AM(D)
2
Middle Cyclone
Working Lining
  • K35, PH30AF, CAST12, CAST13ES, QUIKGUN-C12
Insulation Lining
  • HI16, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 304
Mortar
  • 30AM(D)
View
Middle Cyclones
upper-cyclone
1. Brick Lining
  • Working Lining : K35 | PH30AF
  • Insulation Lining : HI16 | HI20
2. Castable Lining
  • Working Lining : CAST12 | CAST13ES | QUIKGUN-C12
  • Insulation Lining : CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11
Others
  • CALCIUM SILICATE BOARD
  • Anchoring System : STAINLESS STEEL AISI304
  • Mortar : 30AM(D)
3
Lower Cyclone
Working Lining (Normal Condition)
  • K43, C40A, QUIKGUN-MC1500, QUIKSHOT-A40
Working Lining (Severe Condition)
  • PH35AF, PH40AF, PH40AF-S5, PH40-S10, KOTERESIS-S300, C40A, ABRACAST40SIC, ABRACAST50SIC, C-SIC300, QUIKGUN-SIC155, QUIKSHOT30SIC
Insulation Lining
  • IF135, HI16, HI20, CAST105LW, CAST11LW, CAST13LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 310
  • Stainless Steel 253MA
Mortar
  • 43AM(D)
View
Lower Cyclones
upper-cyclone
1. Brick Lining
  • Working Lining
    • Normal Condition : K43
    • Severe Condition : PH35AF | PH40AF=S5 | PH40AF-S10 | KOTERESIS-S300
  • Insulation Lining : IF135 | HI16 | HI20
2. Castable Lining
  • Working Lining
    • Normal Condition: C40A | QUIKGUN-MC1500 | QUIKSHOT-A40
    • Severe Condition: C40A | ABRACAST40SIC | ABRACAST50SIC | C-SIC300 | QUIKGUN-SIC155 | QUIKSHOT30SIC
  • Insulation Lining : CAST105LW | CAST11LW | CAST13LW | QUIKGUN-LW105 | QUIKGUN-LW11
3. Others
  • CALCIUM SILICATE BOARD
  • Anchoring System : STAINLESS STEEL AISI304 |  STAINLESS STEEL 253MA
  • Mortar : 43AM(D)
