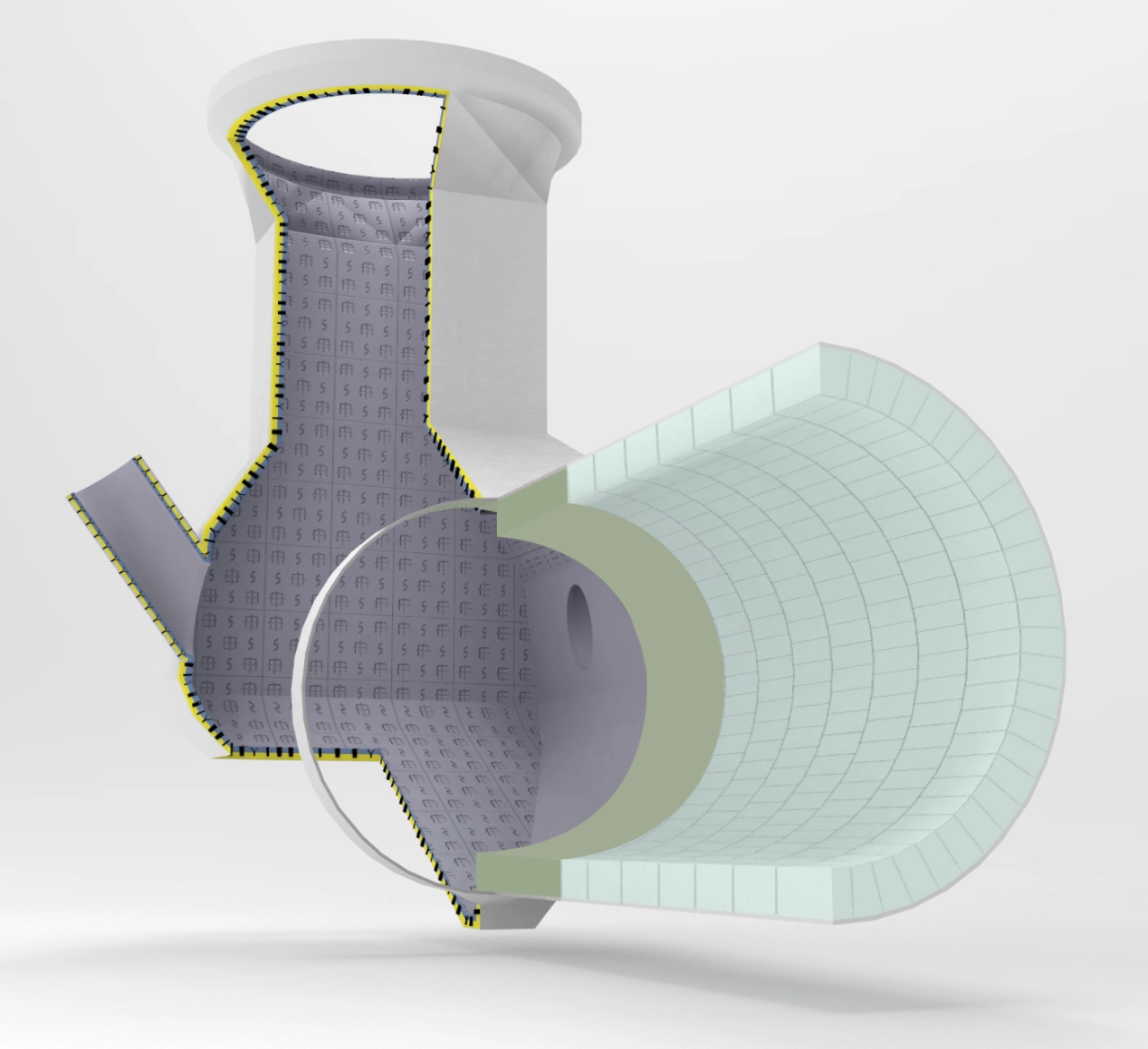

Kiln Riser Duct / Kiln Inlet Chamber

The kiln riser duct and inlet chamber are among the most challenging areas of the pyroprocess, where hot gases rich in volatile components counter-flow with kiln feed. This interaction often leads to the formation of sticky deposits on refractory surfaces, causing buildup, clogging, and operational disruptions.

Our C-SIC refractory series is specifically engineered for these zones. Upon exposure to process conditions, it forms a protective, low-friction film on the surface that prevents chemical penetration into the lining, minimizes material buildup and clogging, and enhances operational stability and uptime

Working Lining (Normal Condition)
  • C60A, QUIKGUN-LC1550, QUIKSHOT-A60
Working Lining (Severe Condition)
  • ABRACAST50SIC, ABRACAST60SIC, C-SIC300, C-SIC500, SUPRAGUN-S400, QUIKSHOT30SIC
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW1, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 310
    + Ceramic Anchor
  • Stainless Steel 253MA
    + Ceramic Anchor
Kiln Riser Duct / Kiln Inlet Chamber
KilnRiserDuct-01
Working Lining (Normal Condition)
  • C60A, QUIKGUN-LC1550, QUIKSHOT-A60
Working Lining (Severe Condition)
  • ABRACAST50SIC, ABRACAST60SIC, C-SIC300, C-SIC500, SUPRAGUN-S400, QUIKSHOT30SIC
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW11, CALCIUM SILICATE BOARD
Insulation Lining
  • IF135, HI20, CAST105LW, CAST11LW, QUIKGUN-LW105, QUIKGUN-LW1, CALCIUM SILICATE BOARD
Anchoring System
  • Stainless Steel AISI 310
    + Ceramic Anchor
  • Stainless Steel 253MA
    + Ceramic Anchor
