Cement Industry

Tertiary Air Duct

Brick and castable linings in the tertiary air duct must endure high-velocity dusty air at elevated temperatures. Leveraging our extensive expertise, we have developed products such as K25D, PH40AF, KB-series, C-series, and ABRACAST-series to deliver durable, long-lasting performance

1
Tertiary Air Duct

Straight Duct

Working Lining
  • K43 | K25D | PH40AF | PH40AF-S5 | PH40AF-S10 | PH50AF
Insulation Lining
  • HI20 | HI23 | CAST105LW | CAST11LW | QUIKGUN-LW105 | QUIKGUN-LW11 |
    CALCIUM SILICATE BOARD
Mortar
  • 43AM(D) | 50AM(D)



BEND PORTION

Working Lining
  • C60A | ABRACAST50SIC | ABRACAST60SIC | QUIKGUN-LC1550 | QUIKGUN-LC1650 |
    QUIKGUN-SIC160 | QUIKGUN-MC1550 | QUIKSHOT-A60
Insulation Lining
  • HI20 | HI23 | CAST105LW | CAST11LW | QUIKGUN-LW105 |
    QUIKGUN-LW11 | CALCIUM SILICATE BOARD
Anchoring System
  • STAINLESS STEEL AISI 310 | STAINLESS STEEL 253MA
View

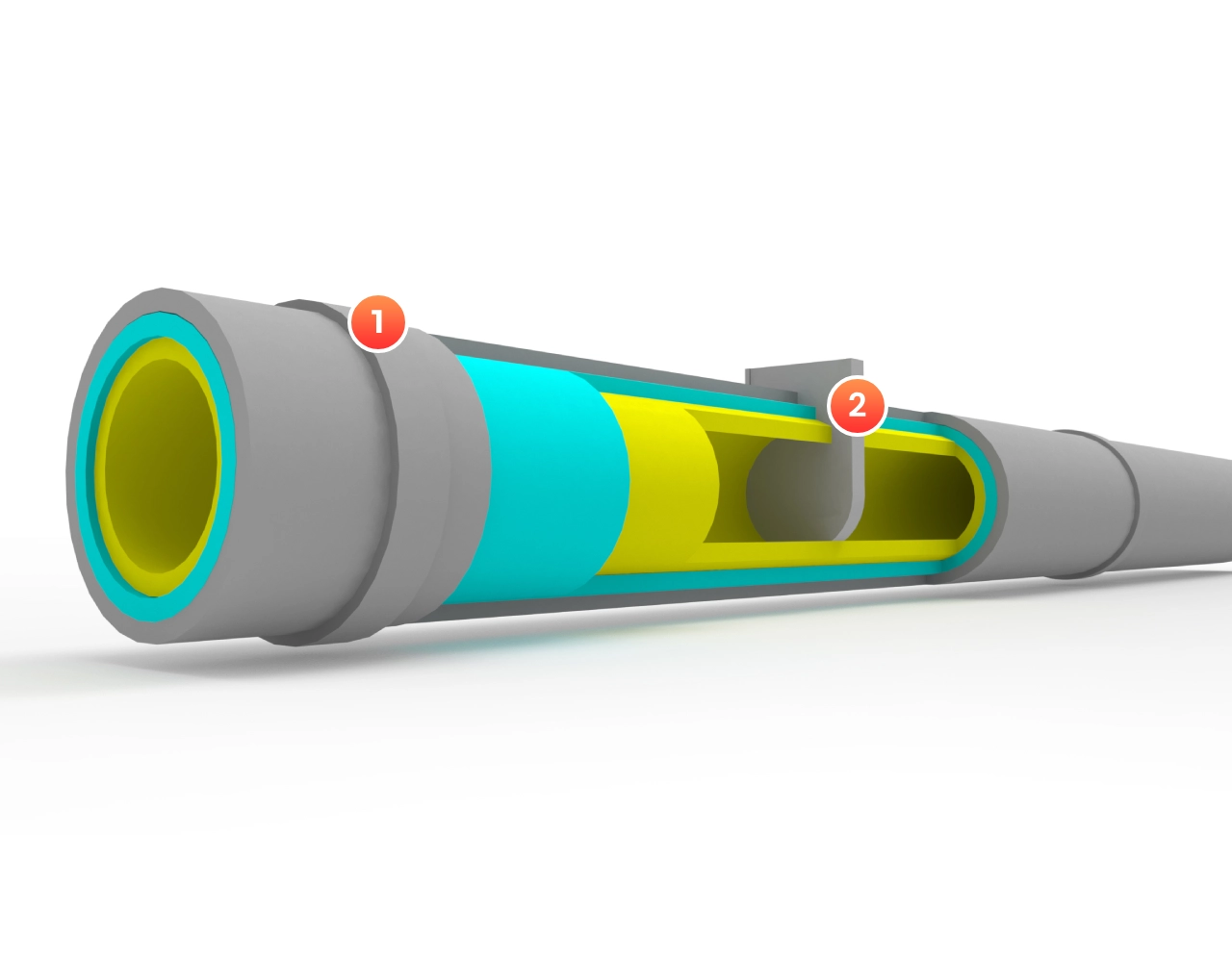

Tertiary Air Duct
TertiaryAirDuct-01
1. Straight Duct
  • Brick Lining : K43 | K25D | PH40AF | PH40AF-S5 | PH40AF-S10 | PH50AF
  • Insulation Lining : HI20 | HI23 |CAST105LW | CAST11LW | QUIKGUN-LW105 |
    QUIKGUN-LW11 | CALCIUM SILICATE BOARD
  • Mortar : 43AM(D) | 50AM(D)
2. Bend Portion
  • Castable :  C60A | ABRACAST50SIC | ABRACAST60SIC | QUIKGUN-LC1550 | QUIKGUN-LC1650 | QUIKGUN-SIC160 | QUIKGUN-MC1550 | QUIKSHOT-A60
  • Insulation Lining : HI20 | HI23 | CAST105LW | CAST11LW  | QUIKGUN-LW105 |
    QUIKGUN-LW11 | CALCIUM SILICATE BOARD
  • Anchoring System : STAINLESS STEEL AISI 310 |
    STAINLESS STEEL 253MA
2
Damper and Damper Housing
Working Lining
  • C70SG | EXDURA-A85 | CAST18 (Mixed with 2% Stainless Steel Hook-End Fibers)
Anchoring system
  • STAINLESS STEEL AISI 310 |
    STAINLESS STEEL 253MA
View

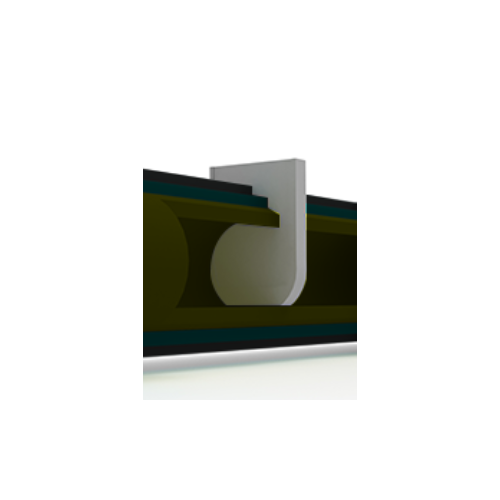

Damper and Damper Housing
DamperDamperHousing
  • Castable : C70SG | EXDURA-A85 | CAST18 (Mixed with 2% Stainless Steel Hook-End Fibers)
  • Anchoring System : STAINLESS STEEL AISI 310 |
    STAINLESS STEEL 253MA
