Steel Industry

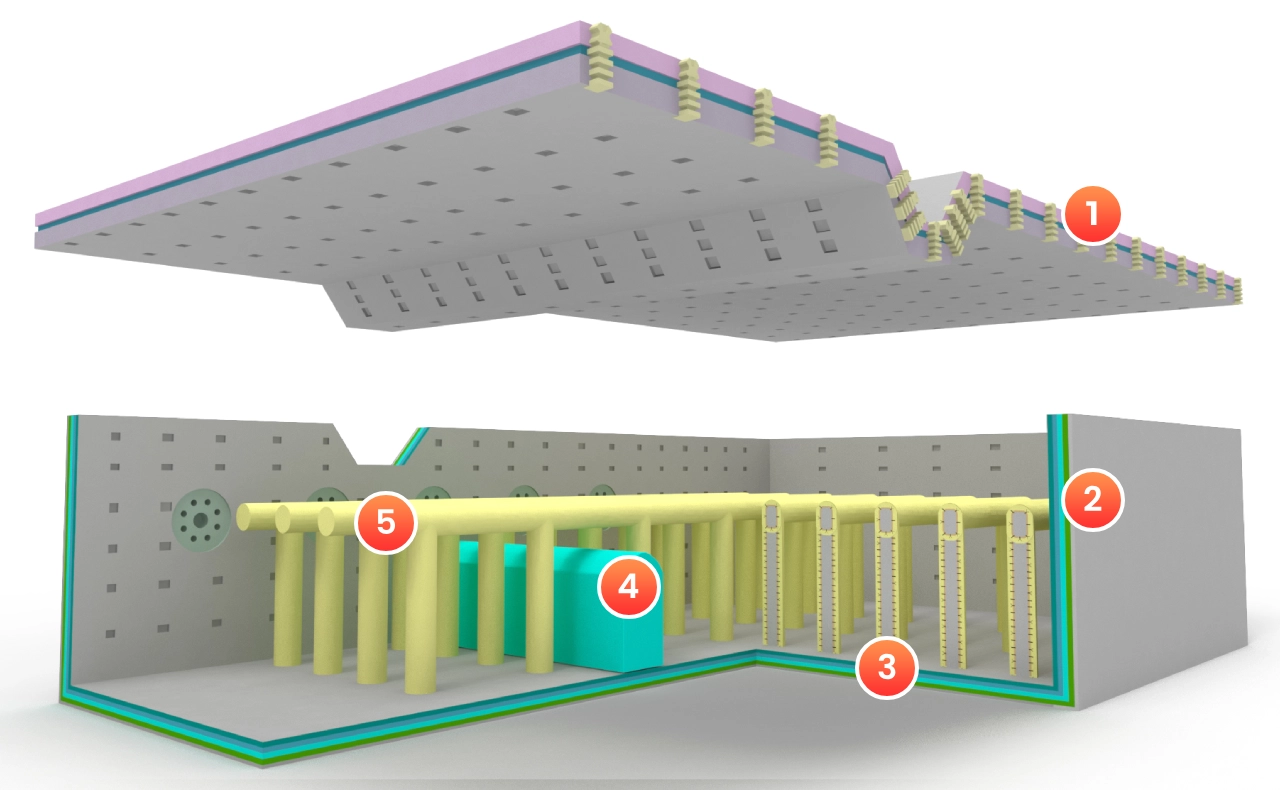

Reheating Furnace (Walking Beam)

Our experienced engineering team can help customers analyze and understand root causes of problems, and improve working performance of refractory lining in Reheating Furnace (Walking Beam).

1
Roof
Castable
  • CAST11LW | NEOCAS1650/XF | ULTRACAST-M65LD
Plastic Refractory
  • PLAST43CS | PLAST80CS | PLAST85PB | MENAPLAST80
Brick
  • BA85 | KB70
Insulation
  • CERAMIC FIBER | INSULATION BOARD
View
Roof

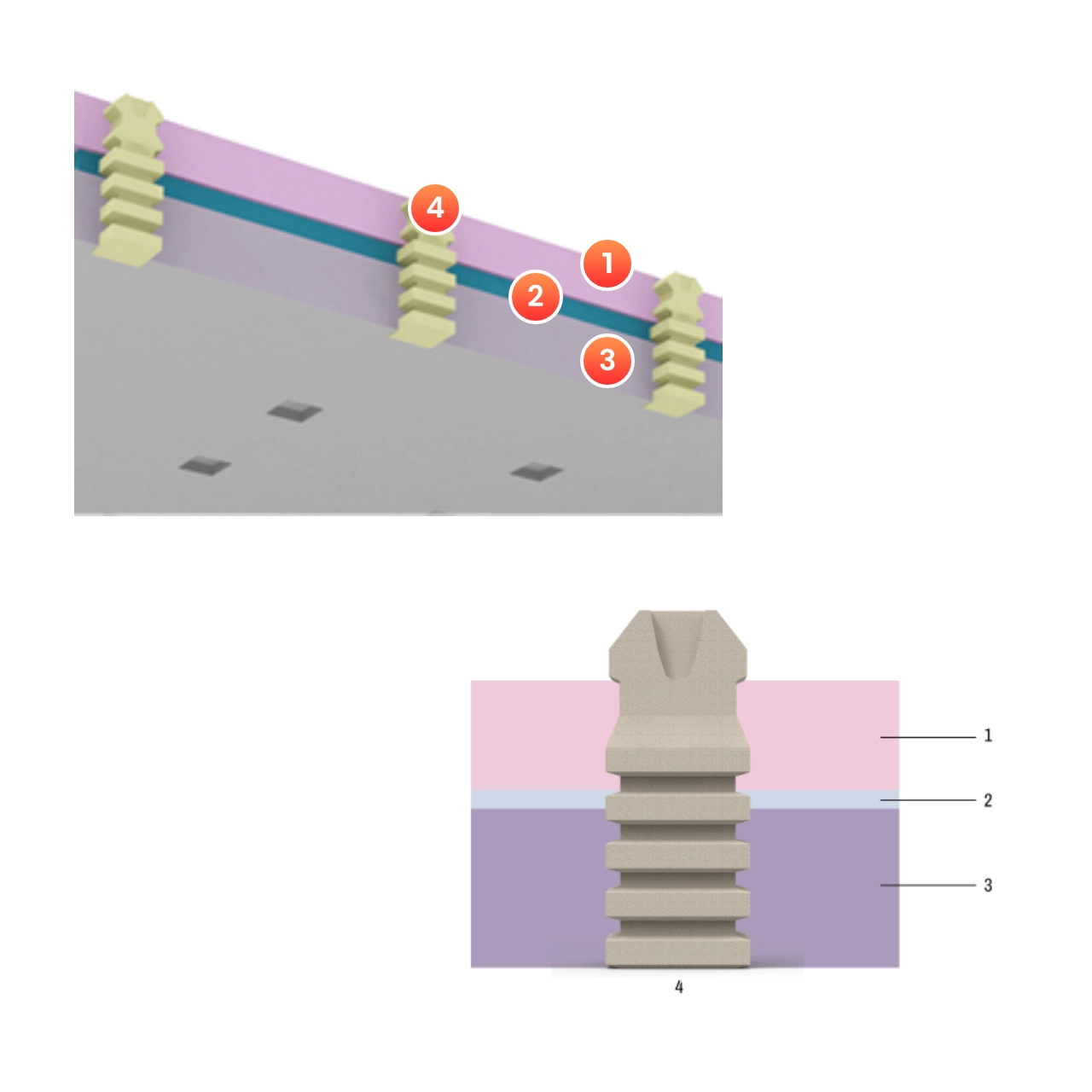

WalkingBeam-Roof
1.Insulation Lining (1st Layer)
  • CAST11LW | ULTRACAST-M65LD
2. Insulation Lining (2nd Layer)
  • CERAMIC FIBER
3. Working Lining
  • NEOCAST1650/XF | PLAST43CS | PLAST80CS | PLAST85PB | MENAPLAST80
4. Refractory Anchor Brick
  • BA85 | KB70
2

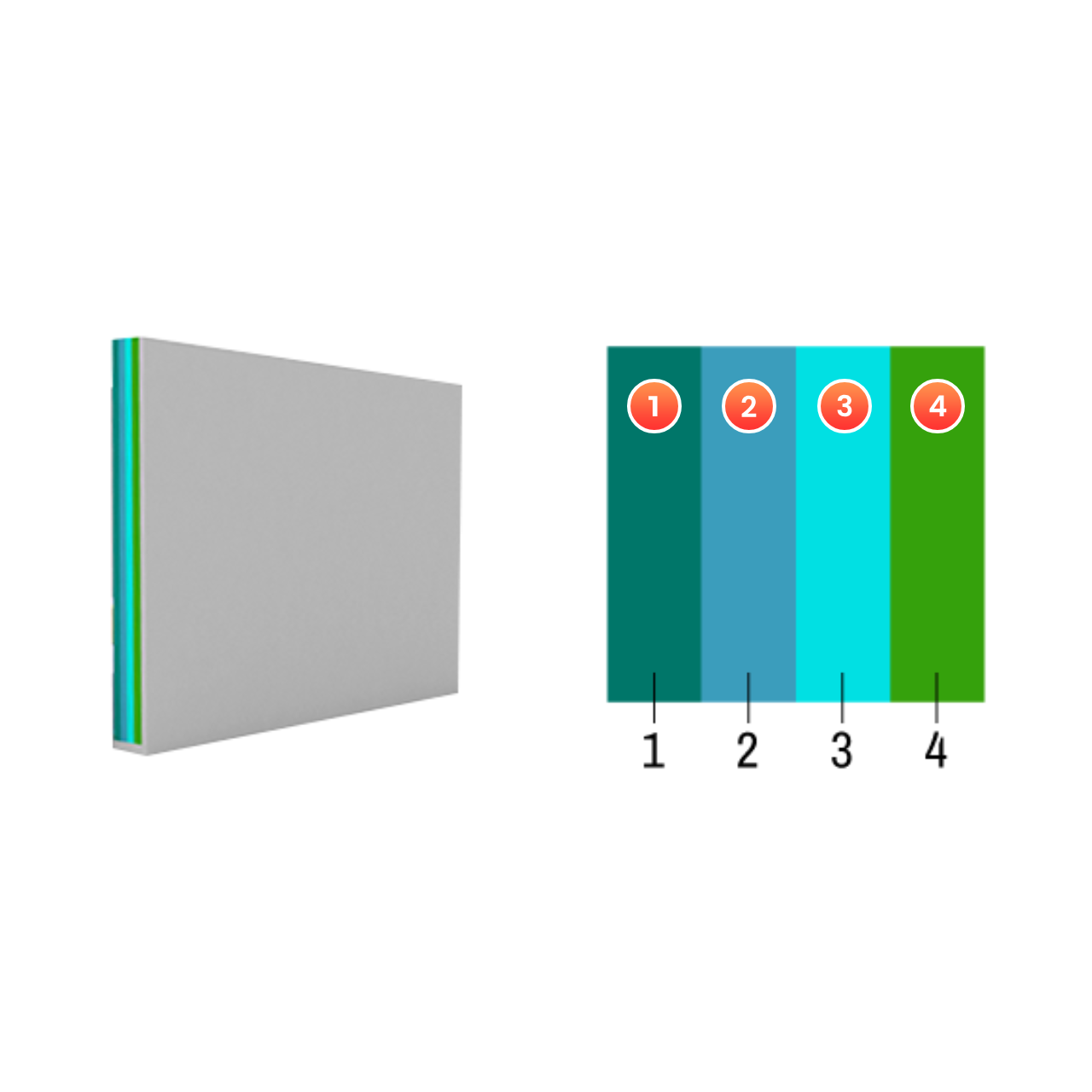

Wall
Working Lining
  • Castable : NEOCAS1650/XF
  • Plastic Refractory : PLAST43CS | PLAST80CS | PLAST85PB | MENAPLAST80
Insulation Lining
  • HI20 | HI23 | CAST13LW | INSULATION BOARD
View
Wall

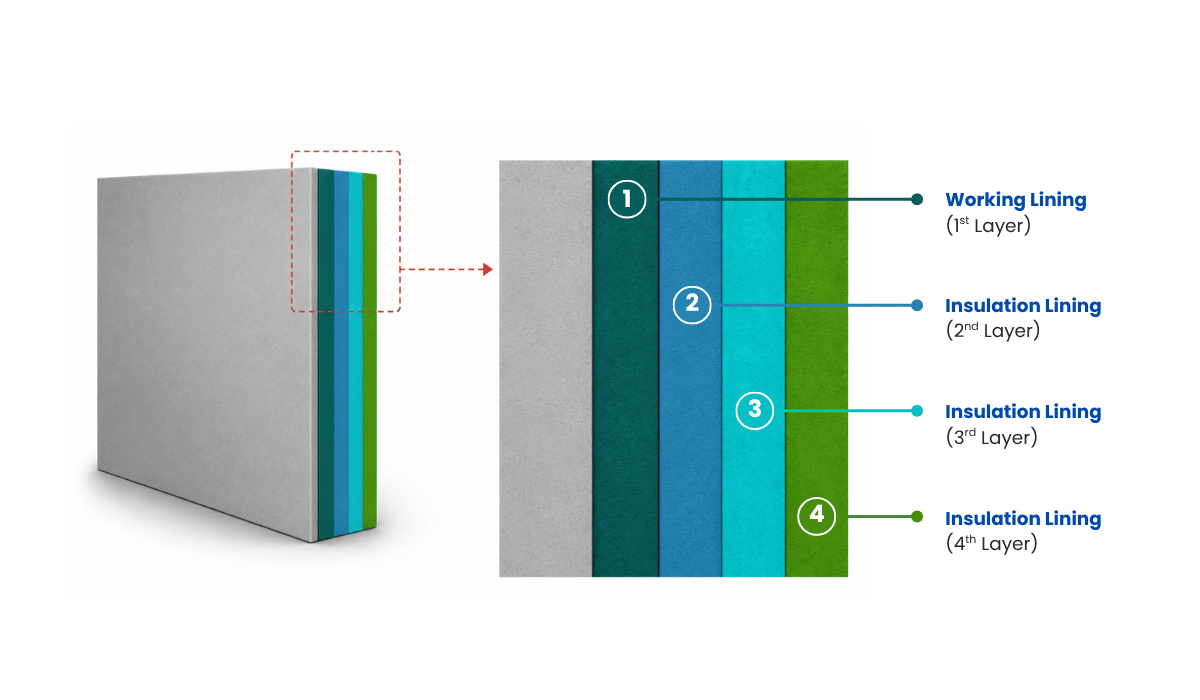

Wall_Walking hearth
Woking Lining (1st Layer)
  • NEOCAS1650/XF | PLAST43CS | PLAST80CS | PLAST85PB | MENAPLAST80
Insulation Lining (2nd Layer)
  • HI20 | HI23 | CAST13LW
Insulation Lining (3rd Layer)
  • HI16 | HI20 | CAST13LW
Insulation Lining (4th Layer)
  • INSULATION BOARD
3
Floor
Working Lining
  • Brick : KB70 | SK36 | SK38
  • Castable : NEOCAS1650/XF | NEOCAS1750/XF | MORTAR-70AM(W)
Insulation Lining
  • SK34 | HI16 | HI20 | HI23 | MORTAR-70AM(W) | MORTAR-43AM(W) | INSULATION BOARD
View
Floor

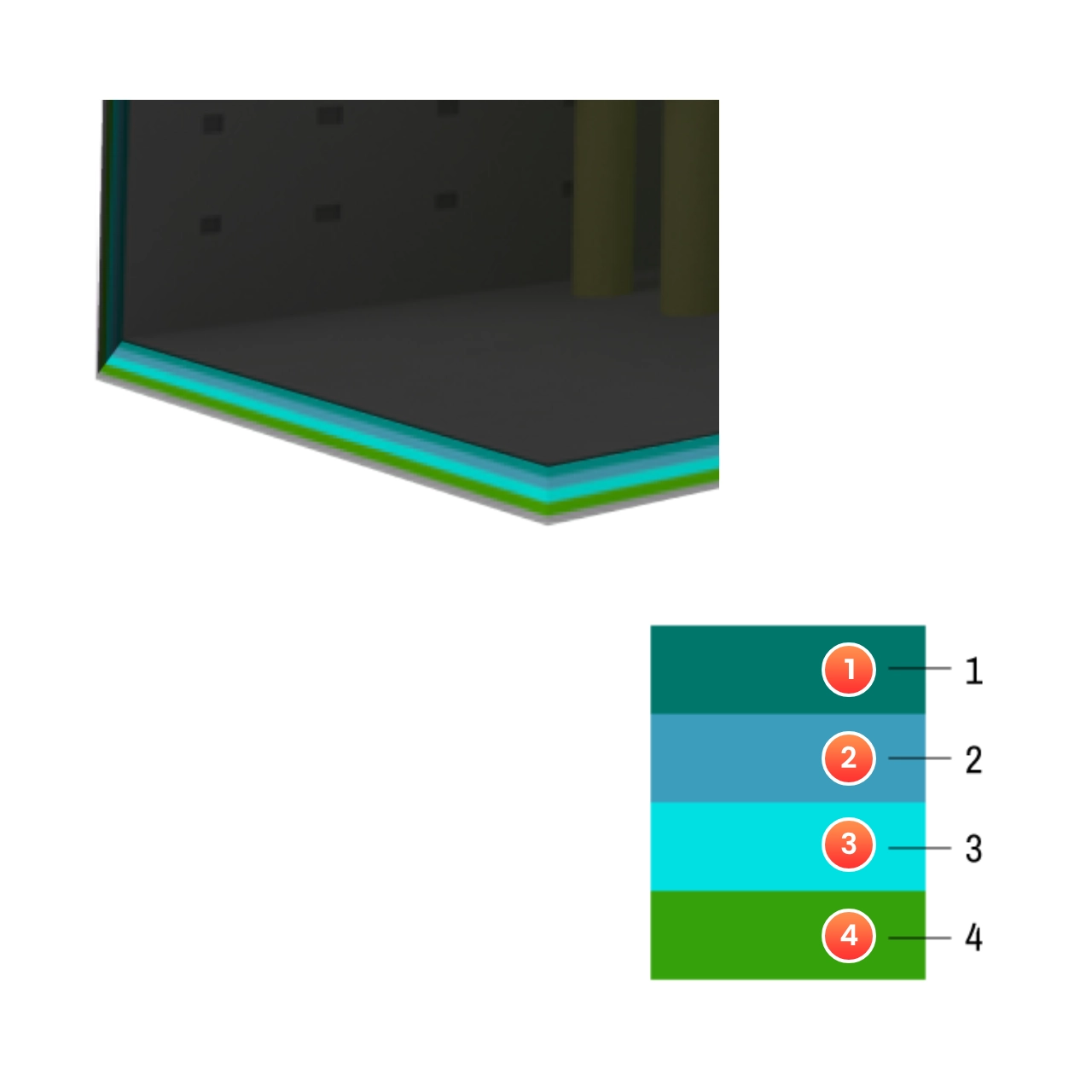

WalkingBeam-Floor
Working Lining (1st Layer)
  • KB70 | SK36 | SK38 | NEOCAS1650/XF | NEOCAS1750/XF |
    MORTAR-70AM(W)
Insulation Lining (2nd Layer)
  • SK34 | MORTAR-70AM(W)
Insulation Lining (3rd Layer)
  • HI16 | HI20 | HI23 | MORTAR-43AM(W)
Insulation Lining (4th Layer)
  • HI16 | HI20 | HI23 | MORTAR-43AM(W) | INSULATION BOARD
4
Buffle Wall
Brick
  • K43 | KB70 | SK38
Castable
  • MORTAR-43(W)
View
Buffle Wall

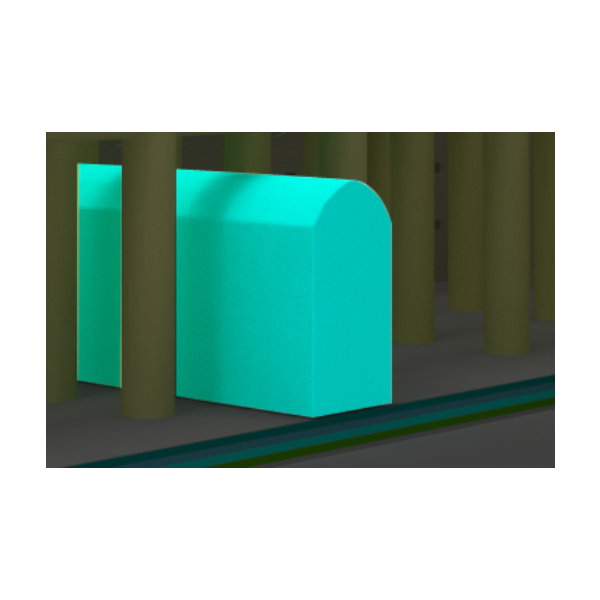

WalkingBeam-BuffleWall
Brick
  • K43 | KB70 | SK38
Castable
  • MORTAR-43(W)
5
Beam and Column
Brick
  • C60A/XF | C70A/XF
Precast & Castable
  • NEOCAS1650/XF | ULTRACAST-M65LD
Plastic Refractory
  • PLAST43CS | PLAST80CS | MENAPLAST80
Insulation
  • CERAMIC FIBER
View
Beam and Column

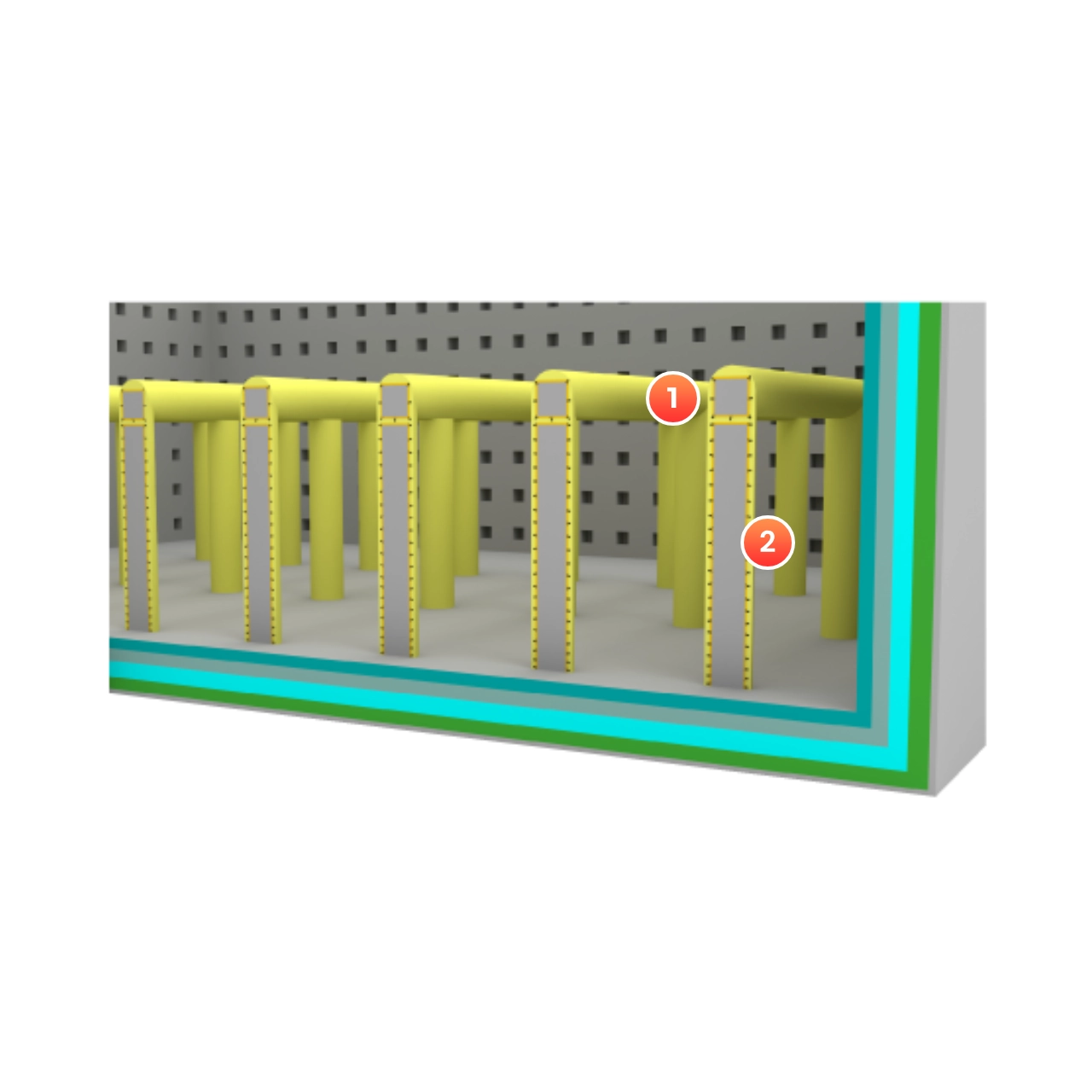

WalkingBeam-BeamColumn
Beam
  • C60A/XF | C70A/XF | CERAMIC FIBER
Column
  • NEOCAS1650/XF | ULTRACAST-M65LD | PLAST43CS | PLAST80CS | MENAPLAST80 | CERAMIC FIBER
