Siam Refractory delivers high-quality refractory products, drawing on decades of experience in lime industry. We offer not only high-quality refractory products but also the ultimate installation solutions, ensuring optimal performance tailored to each application.

APPLICATION

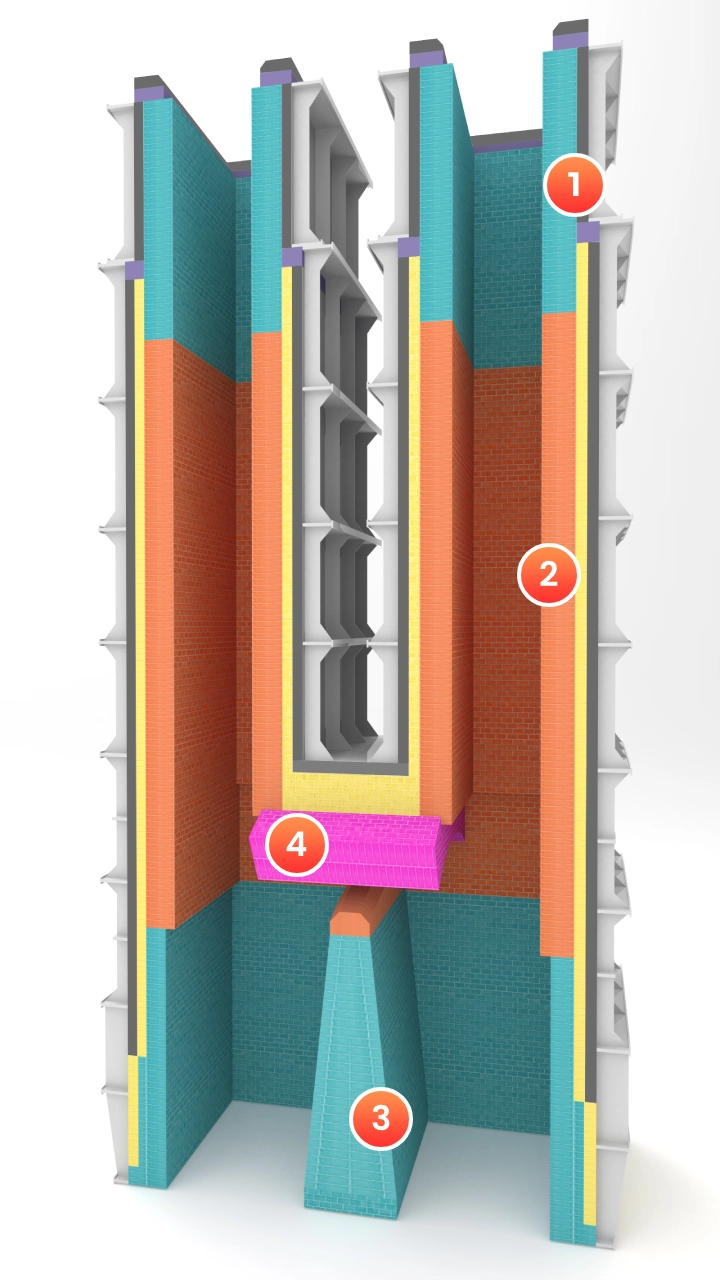

Rectangular Shaft Kiln

To maximize service life and enhance operational efficiency, Siam Refractory provides a complete range of advanced refractory products specifically developed for rectangular shaft lime kilns, including those from leading manufacturers such as MAERZ and CIMPROGETTI. Our value-added services include customized brick lining design and expert technical support throughout the installation process.

1
Inlet Zone
Working Lining
  • K43, K25D
Insulation Lining
  • HI20, Calcium Silicate Board

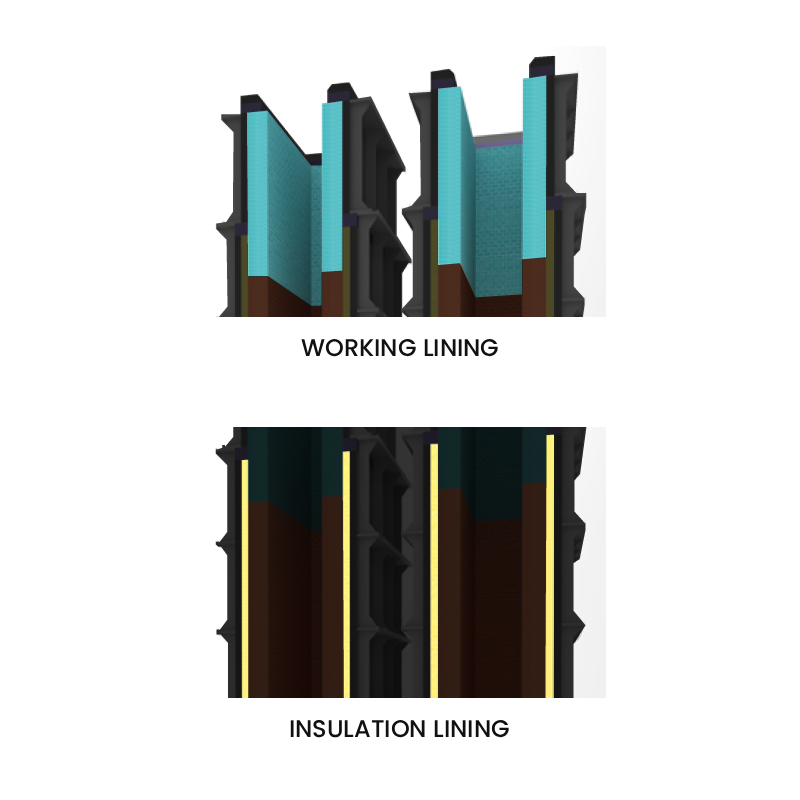

INLET ZONE
Lime-InletZone
  • Working Lining : K43, K25D
  • Insulation Lining : HI20, Calcium Silicate Board
2
Burning Zone
Working Lining
  • M98D, M95B, MS80AF
Safety Lining
  • K43, K25D
Insulation Lining
  • IF145, Calcium Silicate Board

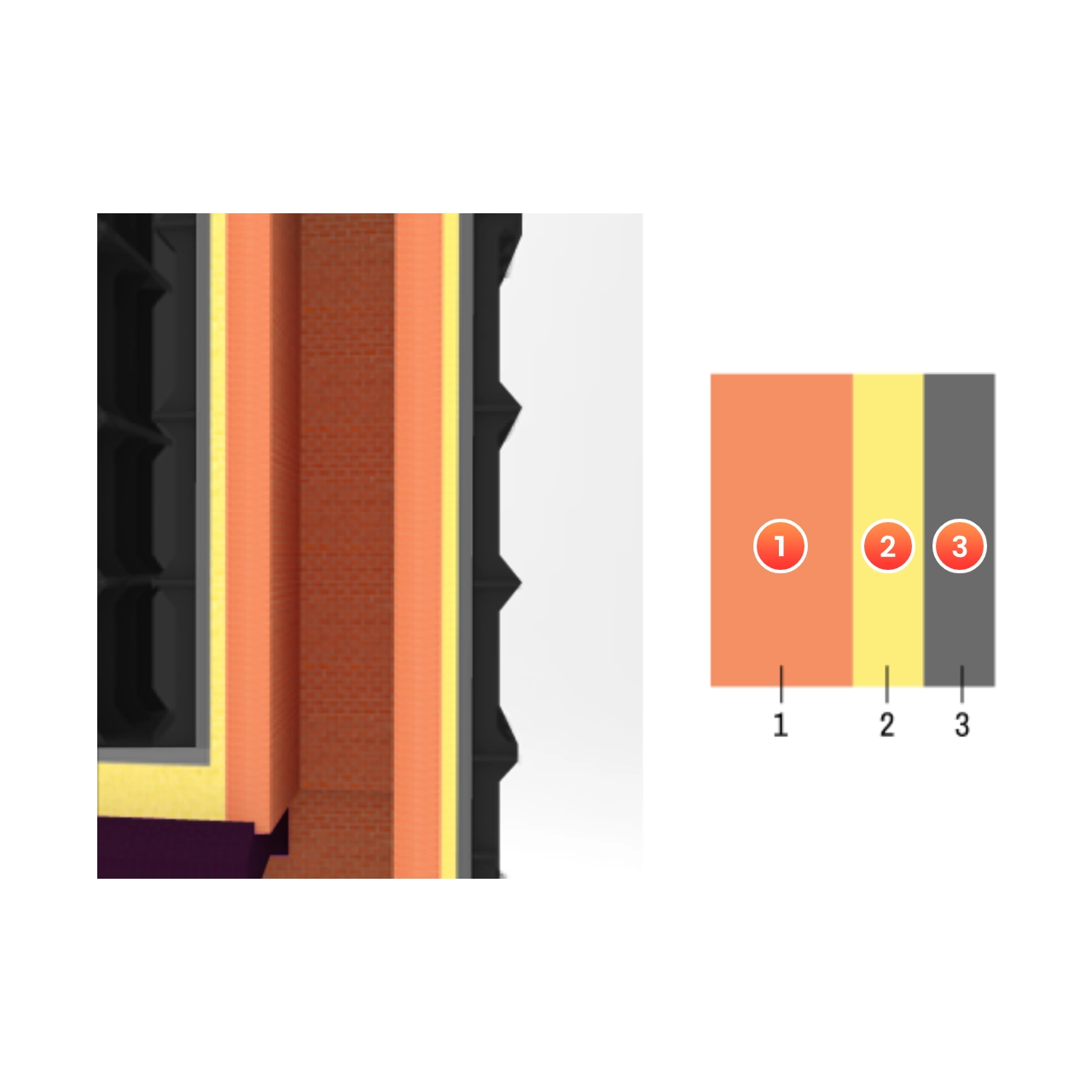

Burning Zone
Lime-BurningZone
  • Working Lining : M98D, M95B, MS80AF
  • Safety Lining : K43, K25D
  • Insulation Lining : IF145, Calcium Silicate Board
3
Outlet Zone
Working Lining
  • K43, K25D, BA85
Insulation Lining
  • HI20, IF145, VF. Board1400

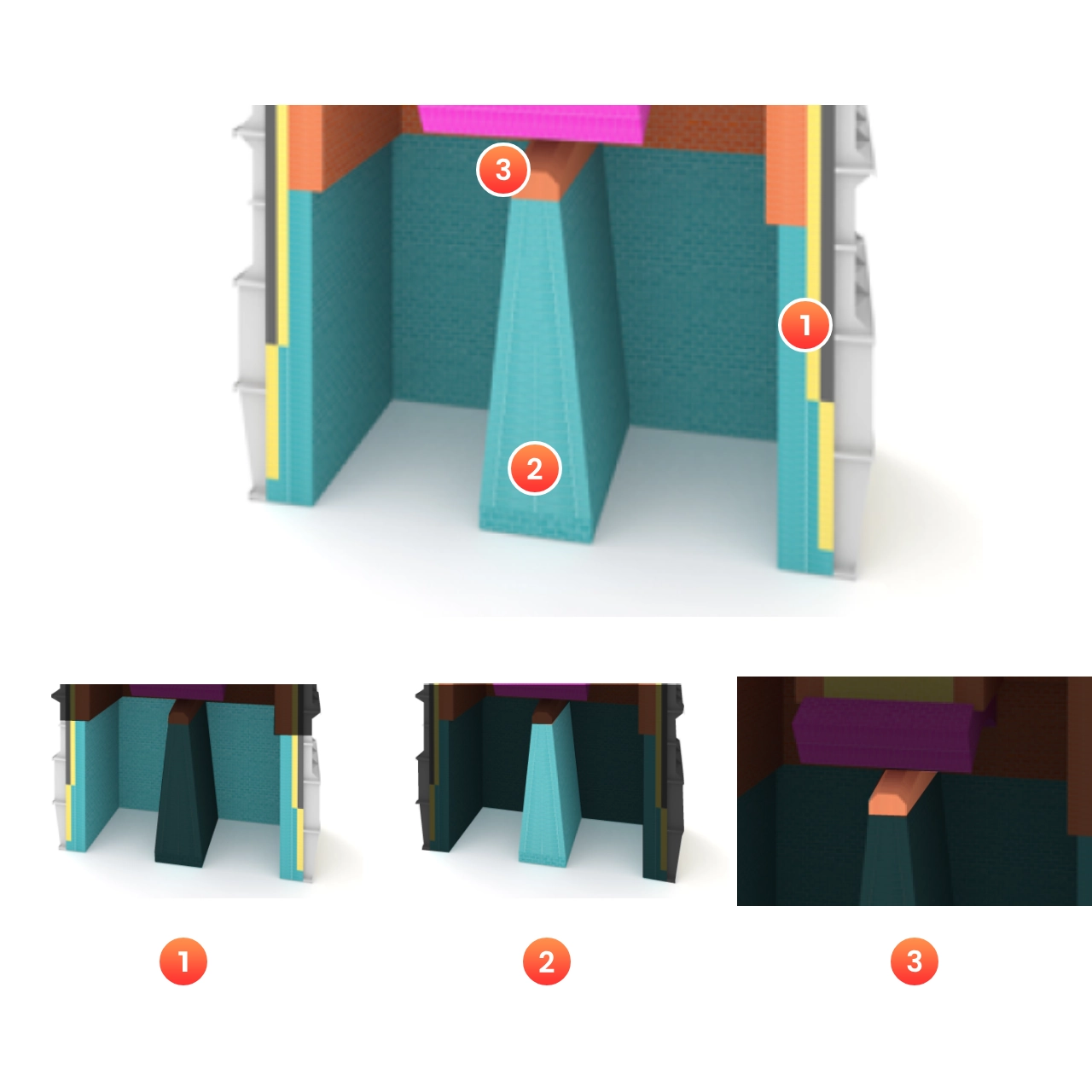

Outlet Zone
Lime-OutletZone
รูปแรก
  • Working Lining : K43, K25D, BA85
  • Insulation Lining : HI20, IF145, VF. Board1400
รูป 2
  • K43
รูป 3
  • M98D , M95B , MS80AF
4
Arch Zone
Working Lining
  • M98D, M95B, MS80AF
Insulation Lining
  • VF. Board1400

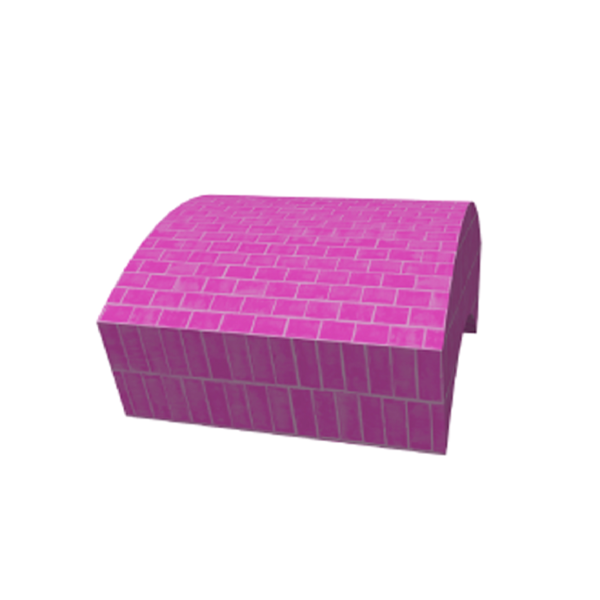

Arch Zone
Lime-ArchZone
  • Arch : M98D, MS80AF
  • Supporting Arch : M95B
  • Insulation Lining : VF. Board1400
